Here is a free app we can exchange sat antena pics with, drag and drop your pics and get a tiny url to share in the chat room.

Please email brad(at)valleymedia.org pics of your ham sat antenna's etc for my new Ham-Satllite Antenna photo page.



ham radio sat antennas , did you send in yours yet?
Email your sat antenna array pics and text to brad (at) valleymedia.org





Alan WA6DNR

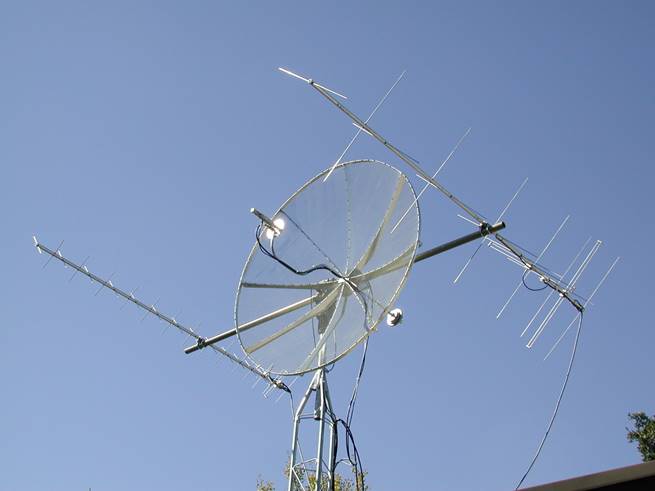

UHF       M Squared 436CP30 /// 1.2 and 2.4 GHz. 6’ dish // VHF   M Squared 2MCP14wa6dnr sat array 5 bands

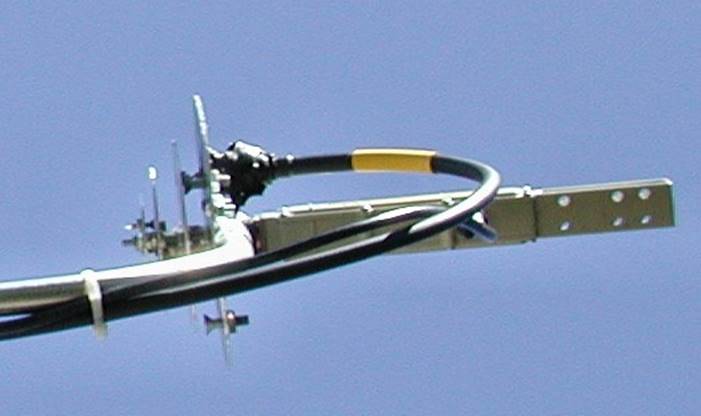

L and S band feed for dish
Patch Feed custom from W0LMD for L and S band .K5 GNA custom downconverter for 2.4 GHz. receive


great background for antenna pics

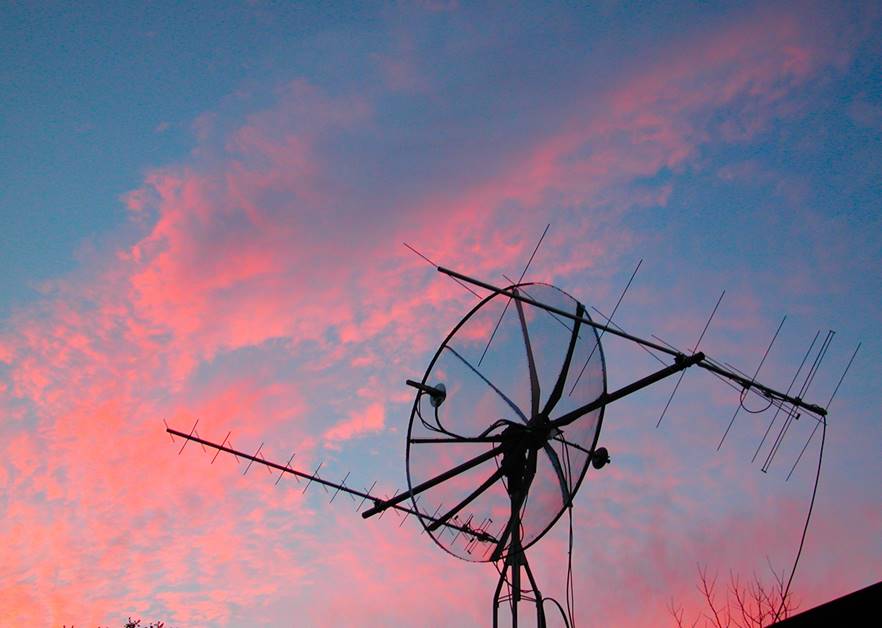

WA6DNR Christmas dish

----Resources for Sat operators :---

https://groups.yahoo.com/neo/groups/Work-Sat/info

Ham Sat Chat Room portal to #amsat on the I.R.C.




K6HR Paul

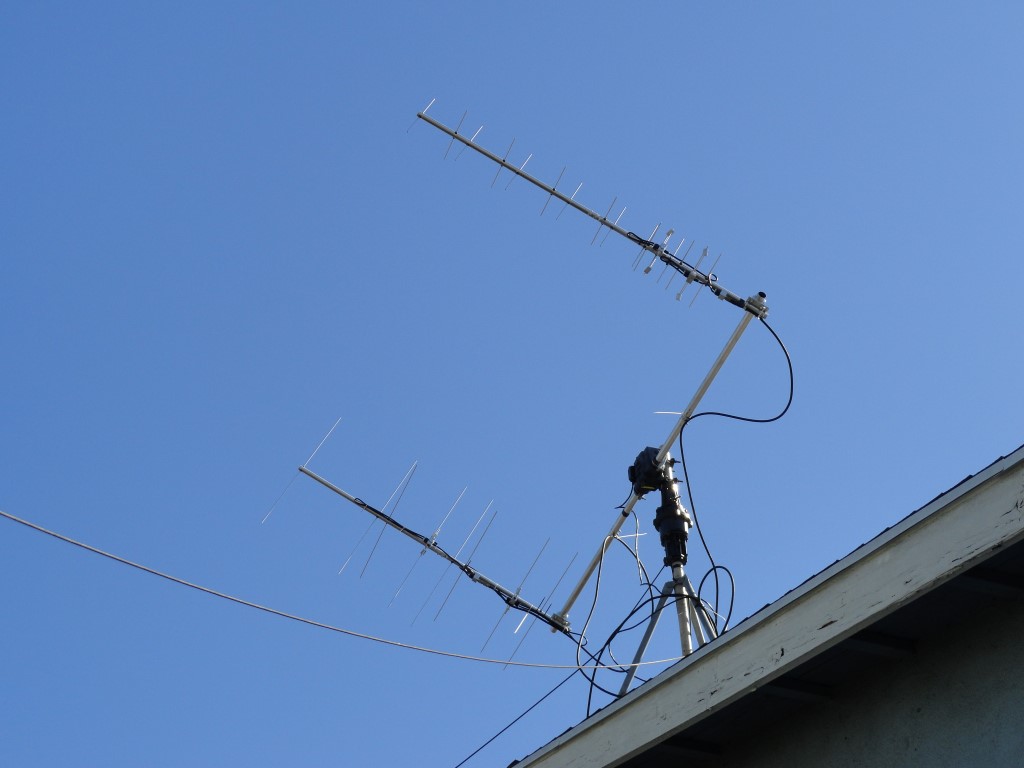

is currently using an M2 LEO-Pack with a Kenpro KR-500 for elevation, and a Yaesu G-800SDX for azimuth,
controlled by an EA4TX ARS-USB interface.
So far I’ve had contacts on AO-73, FO-29, SO-50, XW-2A, XW-2B, XW-2C, XW-2F, AO-85, and AO-7.
.....leo pak and split rotter y-800 on the bottom Click for larger photo.

I would like to work digital sats again, .
I plan to buy another radio for use on the digital sats after learning the Flex 5000 is not capable.
Check out Pauls website and sstv webcam here... K6HR.com

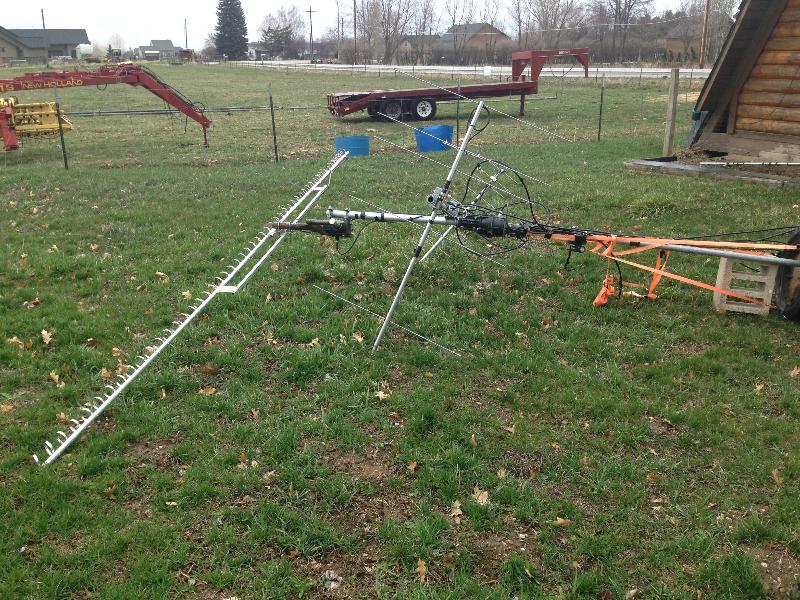

Mike k7uls : " Had a bit of wind so rebuild time"

--k7uls-Mike 'Mike'

Mike k7uls
The base is a solid tire and rim off a snocat so it's really heavy and then a big cinder-block but with microburst doesn't stand a chance.
The 23cm was bought for EME and I have 2 qso's under my belt off the moon with just 10w working large dish stations see my qrz.

K7ULS has many Youtube videos ,

one shows this tower before the storm...




The 432 ant is the rear end of a M2-432-9wl and the 5 ele is the rear of a M2-2m7.

23cm ant is from Directive Systems here in the states the 432 ant is the rear end of a M2-432-9wl and the 5 ele is the rear of a M2-2m7. The 23cm was bought for EME

Working So-50
Mikes Rover antenna setup

Mike k7uls
usually have everything on the back of my Bronco but wanted to finish WAS Satellite and make some EME qso's before summer so it was a temp setup.( for the home qth )

Rover Set up with
Click for video

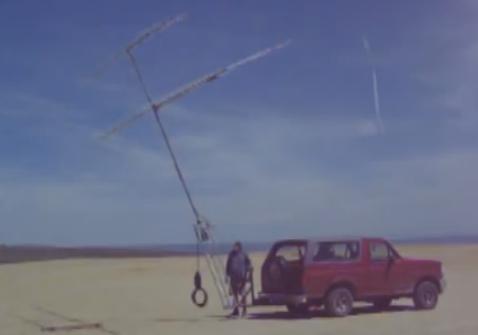

Crank over tower in action !

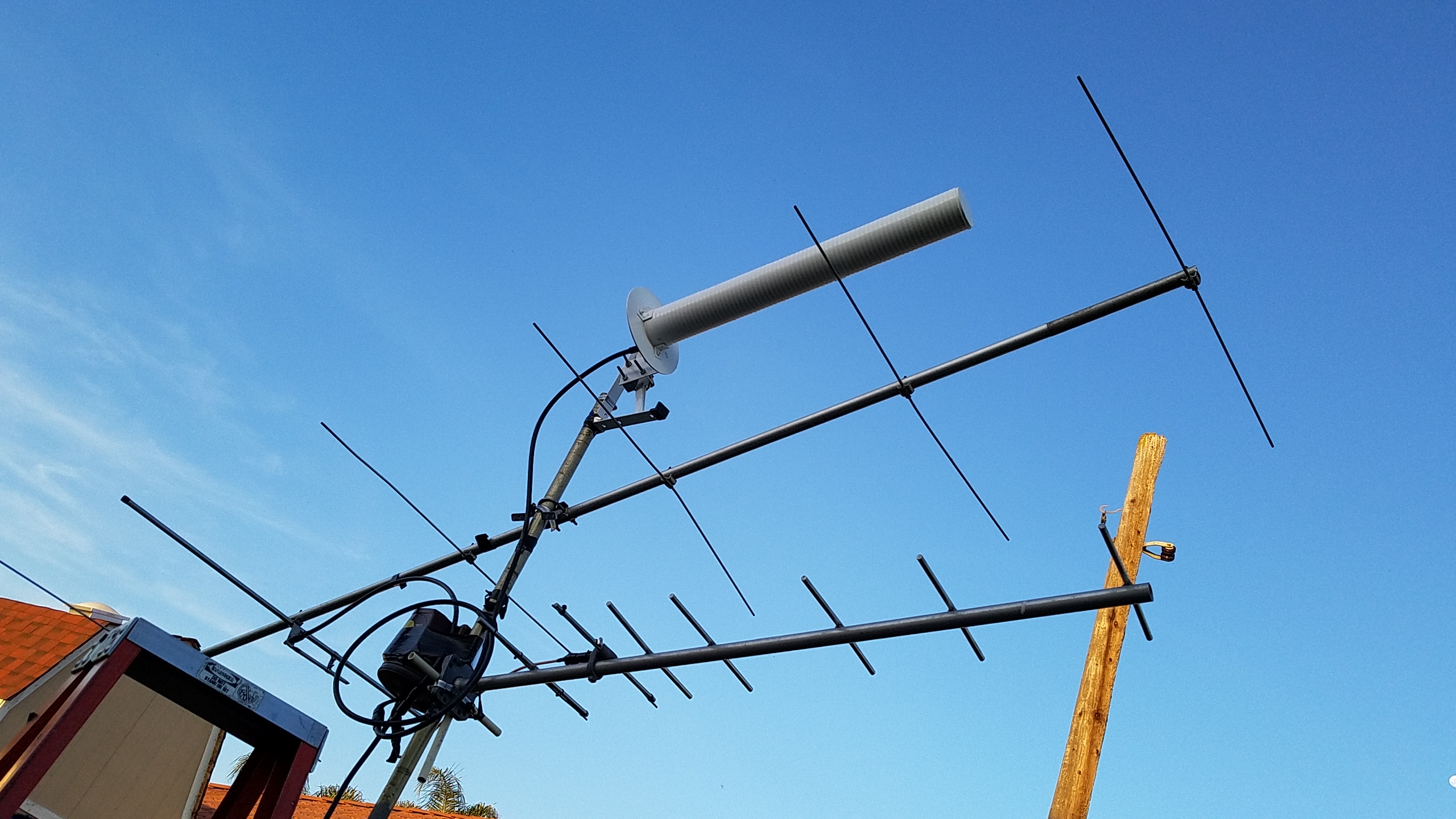

Brad Ko6kL is using this low cost recycled vhf/uhf yagi pair for a tri band antena array for vhf / uhf / and 23cm or 1296mhz

c lick for big. Ko6kL is using this tri band antena array for vhf / uhf / and 23cm or 1296mhz

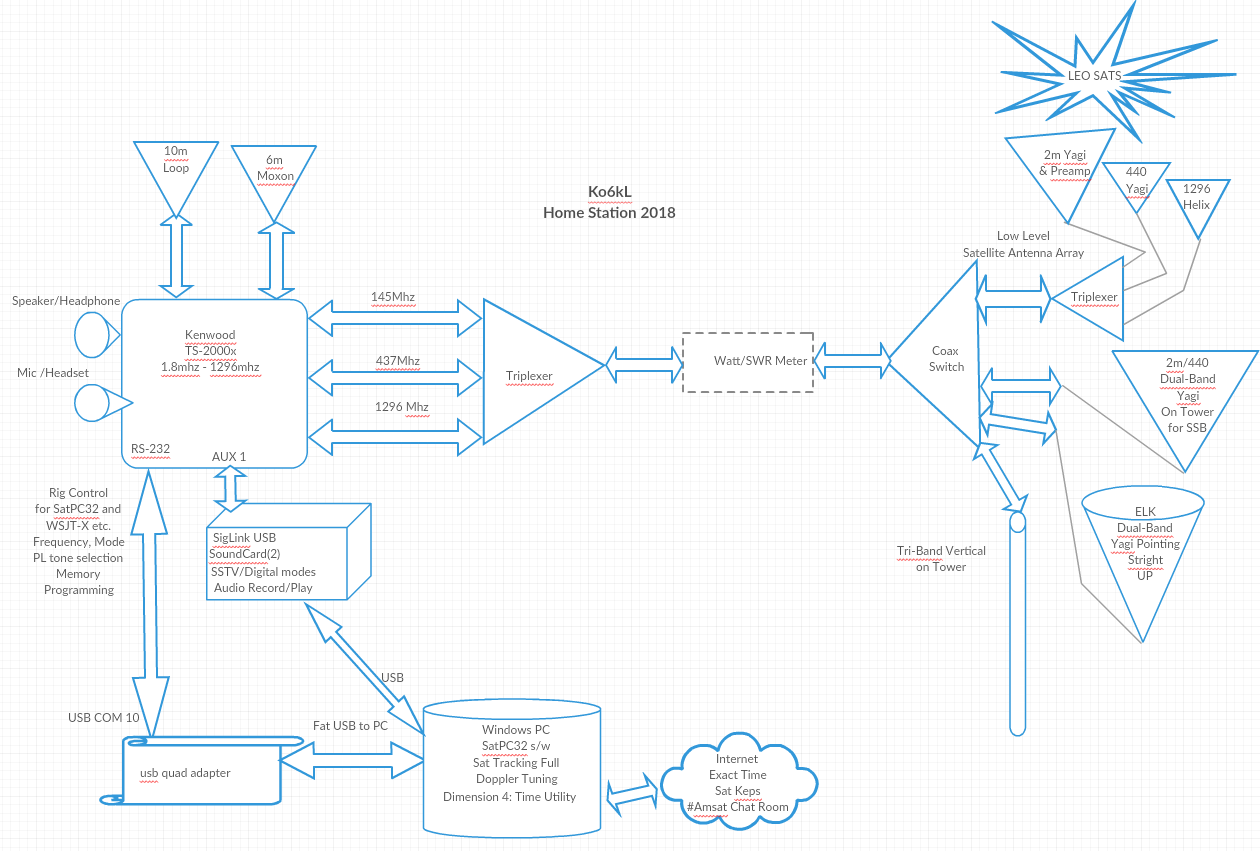

I have been working on my station this year and here is current set up , more or less

sat antenna set up cleck for large view Click for larger view



Same Chart in black overlay. for night time viewing...



your stations pics go here..... your station pics go here...



Return to ham sat-chat-room



ham radio sat antennas , did you send in yours yet?
Email your sat antenna array pics and text to brad (at) valleymedia.org
